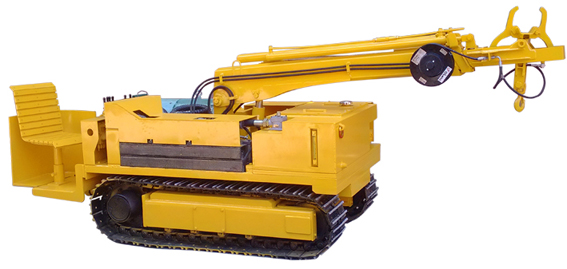

It is used to lifting the U beams in the tunnel supporting works. it is with the features: small size, compact structure, small width, low height, good climbing capacity.
|
Specification |
†Îλ |
QKL-700/30 |
|
Max. lifting capacity |
kg |
700 |
|
Max. lifting height |
m |
¡Ý3.8 |
|
lifting capcity at max. working radius |
kg |
180 |
|
Distance between hook and crawler outside |
m |
1.6¡À0.1 |
|
the max. distance from hook to frontside of the machine |
m |
¡Ý3.5 |
|
Swivel angel |
¡ã |
330¡À15 |
|
Gradient |
¡ã |
¡À18 |
|
Traveling speed |
km/h |
1.8 |
|
Motor power |
kW |
30 |
|
Rated voltage |
V |
660/1140 |
|
Weight |
kg |
3600 |
|
Dimensions (L¡ÁW¡ÁH) |
mm |
4120¡Á1200¡Á1410 |
