Specification:
|
Type |
QYC-8¢óA |
QYC-6.3¢ó |
QYC-5¢ò |
QYC-4¢òA |
QYC-3.2¢ò |
QYC-3.2¢ñ |
|
Max. lifting moment £¨KN¡¤M£© |
240 |
154.5 |
125 |
100 |
64 |
|

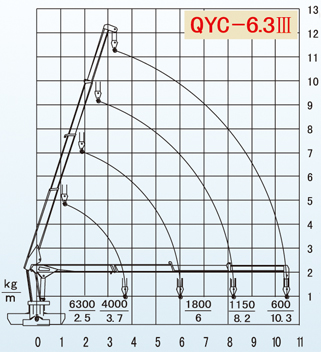

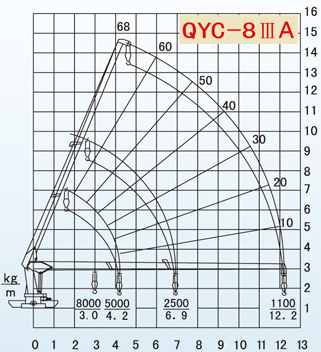

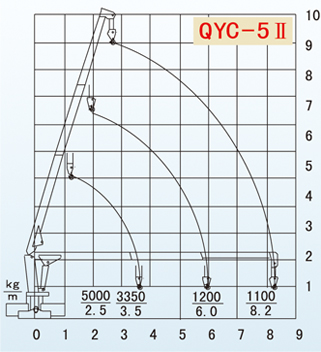

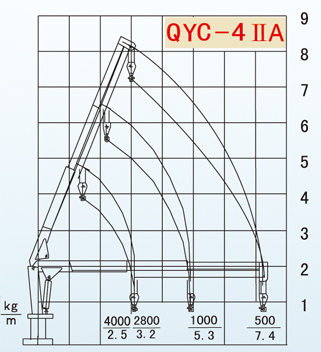

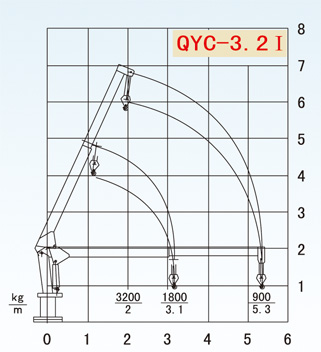

Lifting capacity/working radius(Kg/M£© |
8000/3.0 |
6300/2.5 |
5000/2.5 |
4000/2.5 |
3200/2.0 |
|
5000/4.2 |
4000/3.7 |
4000/3.0 |
3200/3.0 |
2000/3.0 |
2500/2.5 |
|
2500/6.9 |
1800/6.0 |
1700/5.0 |
1700/4.0 |
900/4.5 |
1600/3.5 |
|
1700/9.0 |
1150/8.2 |
1250/7.0 |
700/6.0 |
550/6.0 |
1000/4.5 |
|
1100/12.2 |
600/10.3 |
1100/8.2 |
500/7.4 |
450/7.4 |
900/5.3 |
|
Max. working radius£¨M£© |
12.2 |
10.3 |
8.2 |
7.4 |
7.4 |
5.3 |
|
Max. lifting height£¨M£© |
12.3 |
10.8 |
9 |
8 |
7.7 |
5.8 |
|
Boom angle |
0¡ã-68¡ã |
2¡ã-72¡ã |
2¡ã-72¡ã |
1¡ã-75¡ã |
1¡ã-65¡ã |
1¡ã-65¡ã |
|
Swivel angle |
¡À360¡ãßBÀm»ØÞD |
|
Crane weight£¨Kg£© |
3860 |
2150 |
1700 |
1300 |
1000 |
900 |
|
Matching power |
11KW 15KW 22KW 30KW 늄әC±ÃÕ¾ |
|

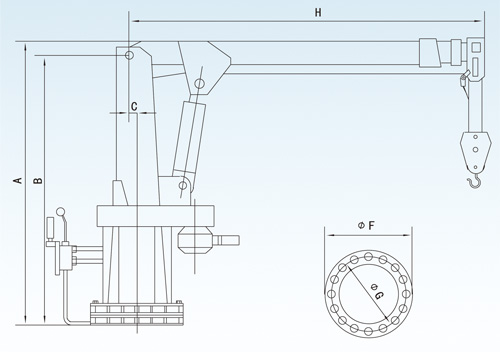

A |
2680 |
2670 |
2400 |
3180 |
3177 |
3134 |
|
B |
2310 |
2366 |
2150 |
2186 |
2052 |
2052 |
|
C |
280 |
225 |
210 |
160 |
163 |
163 |
|
F |
900 |
800 |
650 |
540 |
500 |
500 |
|
G |
850 |
750 |
600 |
480 |
345 |
345 |
|
H |
4575/12605 |
4055/10810 |
3895/8540 |
3450/7650 |
3340/7540 |
3297/5483 |
Structure£º

|
|
|
|
