SCB32/12 Gear Pumps
Application and features
SCB32/12 gear pump is tandem structure, the housing, bushings and front and rear cover are made of high strength alloys, applies two-way floating compensation and radial balance, DU self lubricating and other advanced technology, with a small size, high pressure, stable performance characteristics, widely used in the hydraulic system of motor transport machinery, construction machinery, mining machinery, and agricultural machinery, etc.

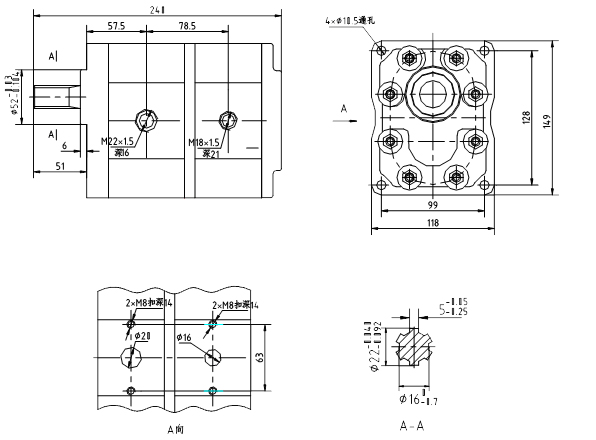

Dimensions
Specification
|
Type |
Displacement£¨L/min£© |
Pressure(MPa) |
Rotation £¨r/min£© |
Volume efficency% |
|
Nominal |
Max. |
Nominal |
Max. |
|
SCB32/12 |
32/12 |
10 |
12.5 |
1500 |
2000 |
¡Ý90 |
